Máquina de soldadura por láser con batería
>
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
All Category

máquina de la soldadura por puntos de la batería

Línea de ensamblaje del paquete de baterías

Máquina de soldadura por láser con batería

Clasificadora de la batería

Máquina de pegatinas de batería

Máquina de ensayo de baterías

Máquina de prueba de células

Probador CCD

Accesorios de la batería
Contacta con nosotros
Ms. Naomi Zhang
cheebo@126.com
+86 199 2880 7536
Contact Now
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
  • Nombre
  • Nombre
  • Nombre
  • Nombre
  • Nombre
  • Nombre

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

Brand Name: CHEEO
MOQ: 1
Precio: $10,000-11,000
Detail Information
Product Description
Detail Information
Lugar de origen:
Guangdong, China
potencia de salida:
6000W
Potencia láser:
Las emisiones de gases de efecto invernadero de los Estados miembros se determinarán en función de l
Velocidad de soldadura:
10-100 mm/s
Precisión de la posición:
± 0.05 mm
Longitud de onda láser:
1080
Frecuencia de regulación:
30-5kHz
Poder ajustable:
10 a 100%
Precisión de reposicionamiento:
± 0.01 mm
Velocidad de posicionamiento rápido:
1000 mm/seg (xyaxis), 500 mm/seg (zaxis)
Calidad del rayo:
<1.4㎡
Estabilidad de potencia:
≦ 3%
Láser enfocando focal:
F = 180 mm
Tamaño que trabaja a máquina máximo:
800*600 mm/1000*800
Consumo de energía total:
3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)
Dimensión general:
L1343XW1454XH22235 mm
Resaltar:

6000W Fiber Laser Welding Machine

,

High Precision Battery Laser Welding Machine

,

Gantry Motion Structure Laser Welding Equipment

Product Description

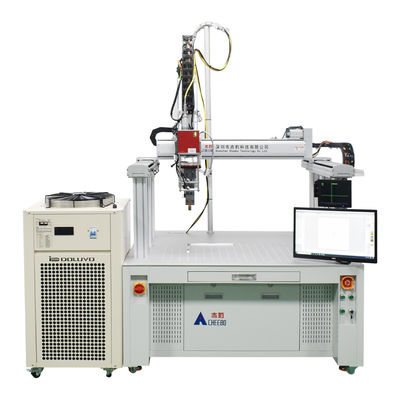

New Fiber Laser Welding Machine - Fully Automatic Square Li-Ion Battery Pack Laser Welding System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 0
This advanced fiber laser welding system integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of performing precise welding of any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly optimized for lithium battery applications.
Key Features:
  • Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
  • Proprietary gantry machine tool design ensures exceptional rigidity and stability
  • High beam quality, reliability, and low operating costs make it ideal for lithium-ion welding
  • Long-life gantry dual-drive motion platform with large welding range
  • Precision guide rail transmission with high-response servo motors for accuracy and speed
  • Produces fine weld spots with deep penetration, minimal taper, and smooth surfaces
  • User-friendly PC industrial computer with intuitive CNC programming system
  • Adjustable laser power with low energy consumption and minimal maintenance
  • Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications:
Laser Power 1500W/2000W/3000W/4000W/6000W Welding Speed 10-100mm/s
Position Accuracy ±0.05mm Laser Wavelength 1080
Regulating Frequency 30-5KHZ Adjustable Power Range 10-100%
Repositioning Accuracy ±0.01mm Rapid Positioning Speed 1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System External water cooling Operating Mode Continuous/Modulation
Beam Quality <1.4㎡ Power Stability ≦3%
Laser Output Mode CW/PWM Maximum Machining Size 800*600mm/1000*800mm
Laser Focusing Focal Length F=180mm CCD Positioning Accuracy 0.01mm (Optional)
Fiber Core 20um/50pm/100pm (Optional) Overall Power Consumption 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions L1343xW1454xH22235mm Machine Weight Approx. 500KG
Product Details
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 1

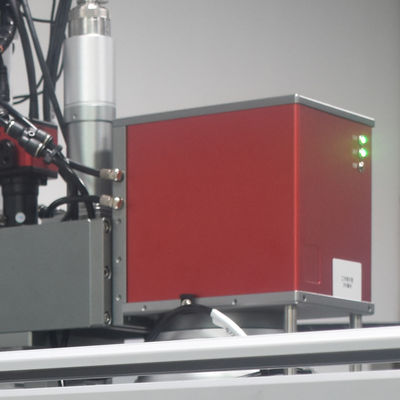

Welding Point Monitoring & Autofocus System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 2

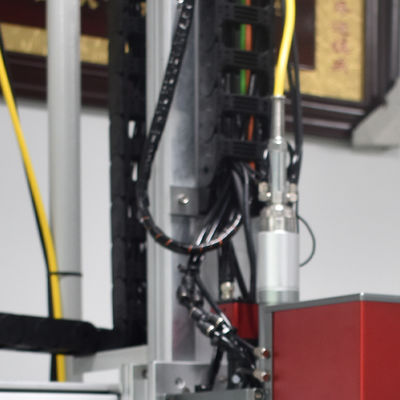

High Precision Welding Joint of Vibrating Mirror
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 3

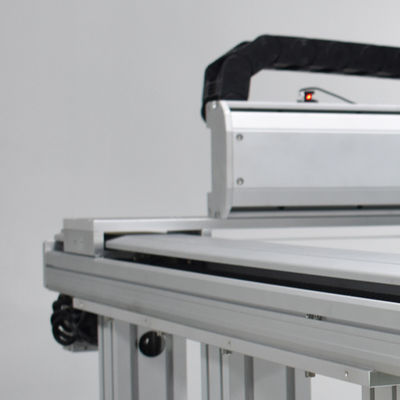

Rail Module
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 4

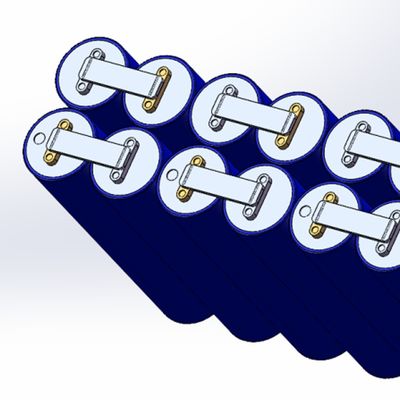

Welding Product Diagram
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 5 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 6 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 7
Frequently Asked Questions
Q: How do I know which model is right for my application?
A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.
Q: What is required for machine installation and operation?
A: Our technicians pre-install all major components before shipping. We provide detailed training videos and manuals for minor assembly. 95% of customers successfully self-install.
Q: Is there a minimum order quantity?
A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.
Q: How is quality controlled in your factory?
A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance before shipment.
Q: What if I encounter technical issues?
A: Contact us immediately - do not attempt repairs. We guarantee 24-hour response to resolve any issues.
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 8 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 9
Tags:

Soldadora por puntos de batería de mano

Máquina de soldadura de litio

Equipo de soldadura de batería

Related Products
6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

Obtenga el mejor precio
6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

Obtenga el mejor precio
Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

Obtenga el mejor precio
6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

Obtenga el mejor precio
Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Obtenga el mejor precio
6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

Obtenga el mejor precio
6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

Obtenga el mejor precio
6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Obtenga el mejor precio

Products Details

Hogar > Productos >
Máquina de soldadura por láser con batería
>
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
All Category

máquina de la soldadura por puntos de la batería

Línea de ensamblaje del paquete de baterías

Máquina de soldadura por láser con batería

Clasificadora de la batería

Máquina de pegatinas de batería

Testador de envejecimiento de la batería

Máquina de ensayo de baterías

Máquina de prueba de células

Probador CCD

Accesorios de la batería

Aguja de soldadura

Fuente de alimentación de soldadura
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
  • Nombre
  • Nombre
  • Nombre
  • Nombre
  • Nombre
  • Nombre

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

Brand Name: CHEEO
MOQ: 1
Precio: $10,000-11,000
Detail Information
Product Description
Detail Information
Lugar de origen:
Guangdong, China
Nombre de la marca:
CHEEO
potencia de salida:
6000W
Potencia láser:
Las emisiones de gases de efecto invernadero de los Estados miembros se determinarán en función de l
Velocidad de soldadura:
10-100 mm/s
Precisión de la posición:
± 0.05 mm
Longitud de onda láser:
1080
Frecuencia de regulación:
30-5kHz
Poder ajustable:
10 a 100%
Precisión de reposicionamiento:
± 0.01 mm
Velocidad de posicionamiento rápido:
1000 mm/seg (xyaxis), 500 mm/seg (zaxis)
Calidad del rayo:
<1.4㎡
Estabilidad de potencia:
≦ 3%
Láser enfocando focal:
F = 180 mm
Tamaño que trabaja a máquina máximo:
800*600 mm/1000*800
Consumo de energía total:
3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)
Dimensión general:
L1343XW1454XH22235 mm
Cantidad de orden mínima:
1
Precio:
$10,000-11,000
Resaltar:

6000W Fiber Laser Welding Machine

,

High Precision Battery Laser Welding Machine

,

Gantry Motion Structure Laser Welding Equipment

Product Description
New Fiber Laser Welding Machine - Fully Automatic Square Li-Ion Battery Pack Laser Welding System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 0
This advanced fiber laser welding system integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of performing precise welding of any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly optimized for lithium battery applications.
Key Features:
  • Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
  • Proprietary gantry machine tool design ensures exceptional rigidity and stability
  • High beam quality, reliability, and low operating costs make it ideal for lithium-ion welding
  • Long-life gantry dual-drive motion platform with large welding range
  • Precision guide rail transmission with high-response servo motors for accuracy and speed
  • Produces fine weld spots with deep penetration, minimal taper, and smooth surfaces
  • User-friendly PC industrial computer with intuitive CNC programming system
  • Adjustable laser power with low energy consumption and minimal maintenance
  • Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications:
Laser Power 1500W/2000W/3000W/4000W/6000W Welding Speed 10-100mm/s
Position Accuracy ±0.05mm Laser Wavelength 1080
Regulating Frequency 30-5KHZ Adjustable Power Range 10-100%
Repositioning Accuracy ±0.01mm Rapid Positioning Speed 1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System External water cooling Operating Mode Continuous/Modulation
Beam Quality <1.4㎡ Power Stability ≦3%
Laser Output Mode CW/PWM Maximum Machining Size 800*600mm/1000*800mm
Laser Focusing Focal Length F=180mm CCD Positioning Accuracy 0.01mm (Optional)
Fiber Core 20um/50pm/100pm (Optional) Overall Power Consumption 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions L1343xW1454xH22235mm Machine Weight Approx. 500KG
Product Details
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 1
Welding Point Monitoring & Autofocus System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 2
High Precision Welding Joint of Vibrating Mirror
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 3
Rail Module
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 4
Welding Product Diagram
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 5 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 6 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 7
Frequently Asked Questions
Q: How do I know which model is right for my application?
A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.
Q: What is required for machine installation and operation?
A: Our technicians pre-install all major components before shipping. We provide detailed training videos and manuals for minor assembly. 95% of customers successfully self-install.
Q: Is there a minimum order quantity?
A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.
Q: How is quality controlled in your factory?
A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance before shipment.
Q: What if I encounter technical issues?
A: Contact us immediately - do not attempt repairs. We guarantee 24-hour response to resolve any issues.

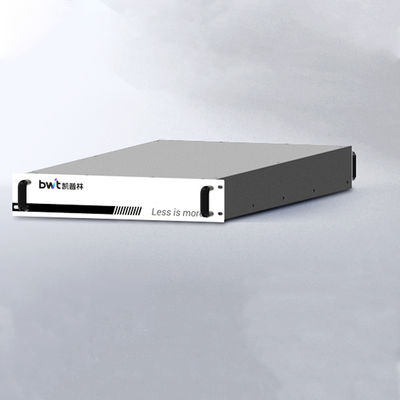

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 8 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 9
Tags:

Soldadora por puntos de batería de mano

Máquina de soldadura de litio

Equipo de soldadura de batería

Related Products
6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

Obtenga el mejor precio
6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

Obtenga el mejor precio
Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

Obtenga el mejor precio
6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

Obtenga el mejor precio
Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Obtenga el mejor precio
6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

Obtenga el mejor precio
6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

Obtenga el mejor precio
6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Obtenga el mejor precio
19928807536
Enlace rápido
Hogar Sobre nosotros productos El video Noticias Casos de trabajo Contacta con nosotros
Contacto rápido

Dirección

Zona A, piso 3, edificio 1, ciencia y parque tecnológico, No.8, camino de Zhenxing, Loucun, comunidad de Xinhu, nuevo distrito de Guangming, Shenzhen, Guangdong, China de Houhai Xufa

Teléfono

86--19928807536

El correo electrónico

cheebo@126.com
19928807536
Nuestro boletín
Suscríbete a nuestro boletín para obtener descuentos y más.
Política de privacidad |  Mapa del Sitio  | China buena calidad máquina de la soldadura por puntos de la batería El proveedor. Derecho de autor © 2023-2025 Shenzhen Chebao Technology Co., Ltd Todos los derechos. Reservado.
