Máquina de soldadura por láser con batería

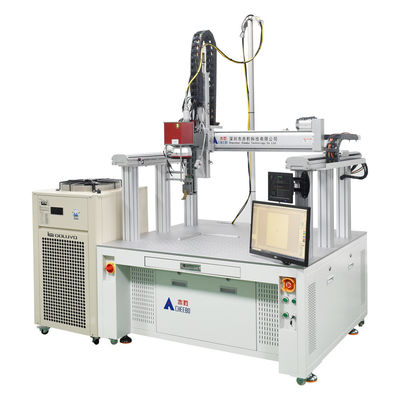

Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

All Category

máquina de la soldadura por puntos de la batería

Línea de ensamblaje del paquete de baterías

Máquina de soldadura por láser con batería

Máquina de pegatinas de batería

Accesorios de la batería

Contacta con nosotros

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

Automatic 6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Brand Name:	CHEEO
MOQ:	1
Precio:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lugar de origen:

Guangdong, China

potencia de salida:

6000W

Potencia láser:

Las emisiones de gases de efecto invernadero de los Estados miembros se determinarán en función de l

Velocidad de soldadura:

10-100 mm/s

Precisión de la posición:

± 0.05 mm

Longitud de onda láser:

1080

Frecuencia de regulación:

30-5kHz

Rango de potencia ajustable:

10 a 100%

Precisión de reposicionamiento:

± 0.01 mm

Precisión de posicionamiento rápido:

1000 mm/seg (xyaxis) 、 500 mm/seg (zaxis)

Calidad del rayo:

<1.4㎡

Estabilidad de potencia:

≦ 3%

Láser enfocando la distancia focal:

F = 180 mm

Tamaño que trabaja a máquina máximo:

800*600 mm/1000*800

Consumo de energía total:

3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)

Dimensión general:

L1343XW1454XH22235 mm

Resaltar:

6000W Battery Laser Welding Machine

3 Years Warranty Laser Welding Machine

High Precision Battery Welding Machine

Product Description

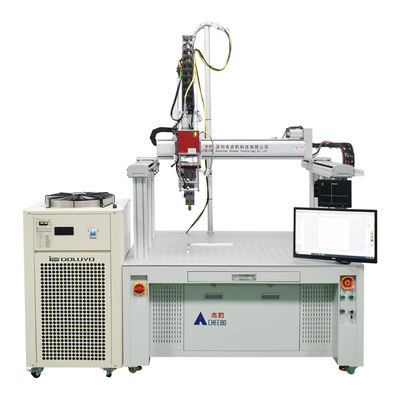

Automatic High Frequency Welding Machine Lithium Battery Pack Galvanometer Laser Welding Machine

This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, PC control system, etc. It can perform welding of any planar geometric shape trajectory such as points, lines, circles, etc. It is an efficient, safe, and stable high-power fiber laser welding machine that performs well in lithium battery welding process.

Key Features

The continuous galvanometer laser welding machine uses the most advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum)
Combined with our company's independently developed gantry machine tool, it has excellent rigidity and stability
Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
High lifespan gantry dual drive motion platform with large surface travel welding range
Precision guide rail transmission with high response servo motors for fast, accurate operation
Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Automatic top pressure welding device reduces welding fixture requirements
Optional CCD visual positioning system and automatic focal length measurement

Technical Specifications

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details

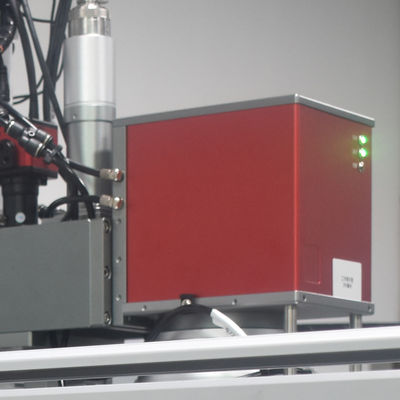

Welding point monitoring, Autofocus

High precision welding joint of vibrating mirror

Rail module

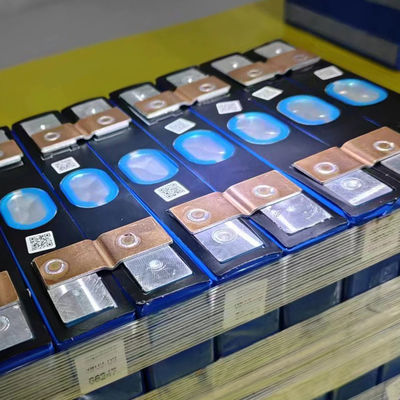

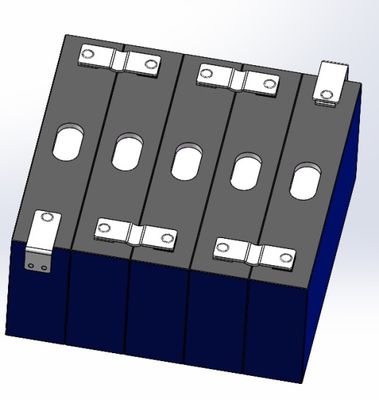

Welding product diagram

Frequently Asked Questions

Q: I don't know which one suits me?

A: Please provide us with the following information: 1) Battery model and type. 2) Welding materials and welding thickness. We have extensive sales experience and can provide professional advice.

Q: How to install and run the machine?

A: Our technicians pre-install the machine before shipping. For minor components, we provide detailed training videos and user manuals. 95% of customers can self-learn the operation.

Q: What is your minimum order quantity?

A: We have no minimum order quantity. We support all order sizes with equal dedication.

Q: How is your factory's quality control?

A: Quality is our priority. Each unit undergoes over 20 tests, with final QC verification of welding performance.

Q: What if there's a problem with the machine?

A: Contact us immediately. Do not attempt repairs yourself. We respond within 24 hours to resolve any issues.
